Kitech Multi

Basic Info.

Model NO.	KL-210GDS
Forming Function	Forming, Filling, Seal
Driven Type	Pneumatic
Material Type	Solid
Packaging	Bag
Packaging Material	Film
Packaging Accuracy	±0.5g
Optional Multi Head	2-14
Packing Speed	Max.80bags/Min
Packaging Type	Back Sealing Pillow Bag

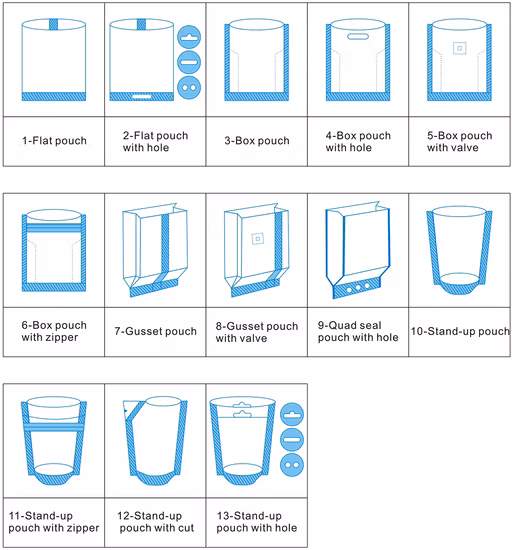

Optional Bag Type	Gusset Bag,Resealable Bag,Quadsealing Gusseted Bag
Optional Devices	Data Printer, Air-Filling Device, Pouching Devic
Power	2.6kw
Controller System	PLC
Packing Material	OPP/CPP/PE/Pet/Po/PA/Al/VMCPP etc.
Bag Width	Max.250mm
Bag Length	Max.350mm
Region	Foshan, Guangdong, China Supply
Machine Material	304 Stainless Steel
Machine Name	Automatic Weighing Vertical Automatic Candy Floss
Transport Package	Export Wooden Case
Specification	(L)2000*(W)2300*(H)2100mm
Trademark	Kinghanlong
Origin	Guangdong, China (Mainland)
HS Code	8401200000
Production Capacity	200 Sets/Month

Product Description

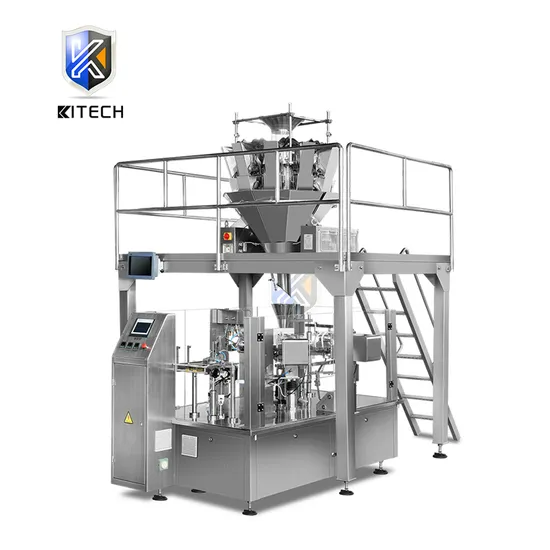

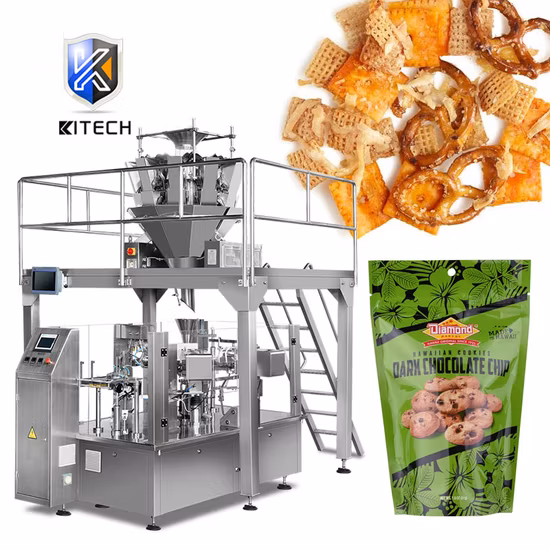

KITECH Multi-Function Macaroni Tamarind oatmeal Cereal Corn Flake Granule Zip Lock Bag Packing Machine Price

1,Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly. 2,Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production. 3,Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.4,Safty device: Machine stop at abnormal air pressure, heater disconnection alarm. 5,Use the plastic bearing, don't need put on oil, less pollution. 6,Use no oil vacuum pump, avoid polluting the environment in the production. 7,huff,clamp the meatus of bag when put the windpipe into it, then huff to open up the bag fully to bottom in oder to avoid the material overflow from the bag if the it is not opend fully. 8,The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification 9,Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food. 10,With different feeders changed to pack solid, liquid, thick liquid ,powder and so on. 11,The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

Technical Parameters

Machine model	KL-320CD	KL-420CD	KL-520CD	KL-620CD	KL-720CD	KL-820CD	KL-1050CD
Bag shape	Back sealing pillow bag/4-side sealing bag
Packing speed	25-80bags/min
Roll thickness	0.05-0.15mm
Max roll width	320mm	420mm	520mm	620mm	720mm	820mm	1050mm
Roll diameter	320mm	320mm	320mm	320mm	320mm	320mm	320mm
Bag width	50-150mm	60-200mm	80-250mm	100-300mm	100-350mm	120-400mm	Max:520mm
Bag length	80-240mm	80-300mm	80-350mm	100-450mm	100-450mm	120-550mm	Max:750mm
Packing weight	Max:0.5kg	Max:1kg	Max:3kg	Max:4kg	Max:8kg	Max:10kg	Max:15kg
Voltage	220V
Power	2KW	2.2KW	3KW	3.4KW	3.6KW	3.8KW	6KW
Additional configuration	Nitrogen fiiling device Coding printer gas-filled device punch device etc

Application&Bag typeFood:Candy,Beans,Chips,Popcorn,Pasta,Corn,Rice cake,Jelly,Cookies,Cheese,Peanuts,Coffee Creamer,Almond,etc.Daily necessities:Mothballs,Disposable Mask,Buttons,etc.Hard&Ware:O ring,Screw,Dowel,etc.Medical:Pill,Medicine,etc.
FAQ
Make sample bagsIf it's necessary according to your requirements, we can make sample bags for your reference.Free machine adjustment before shipmentOur technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.Free Training CD to ship with machineOur technical team will provide a trainning CD to our customer in order to train how to use the machine.Life Long after sale serviceOur factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.Overseas door to door serviceOur engineer overseas door to door service is available.Warranty and after-sales serviceOne year warranty, 24 hours online technical service and solution can be offered.Remark1.Our company accept the payment of L/C,D/A,D/P,T/T,Western Union,MoneyGram,Visa,Mastercard, e-checking,PayPay,apple pay etc,confirm with our sales personnel finally please.2.There may be charge when adding the additional configuration, please confirm with our sales personnel.3.The packing machine final price need to confirm with our sales personnel.4.Our company reserve all the right for the final explanation.
